CL-SB-13B-01T
Manufacturer:
Copal Electronics
Mfr.Part #:
CL-SB-13B-01T
Datasheet:
Description:

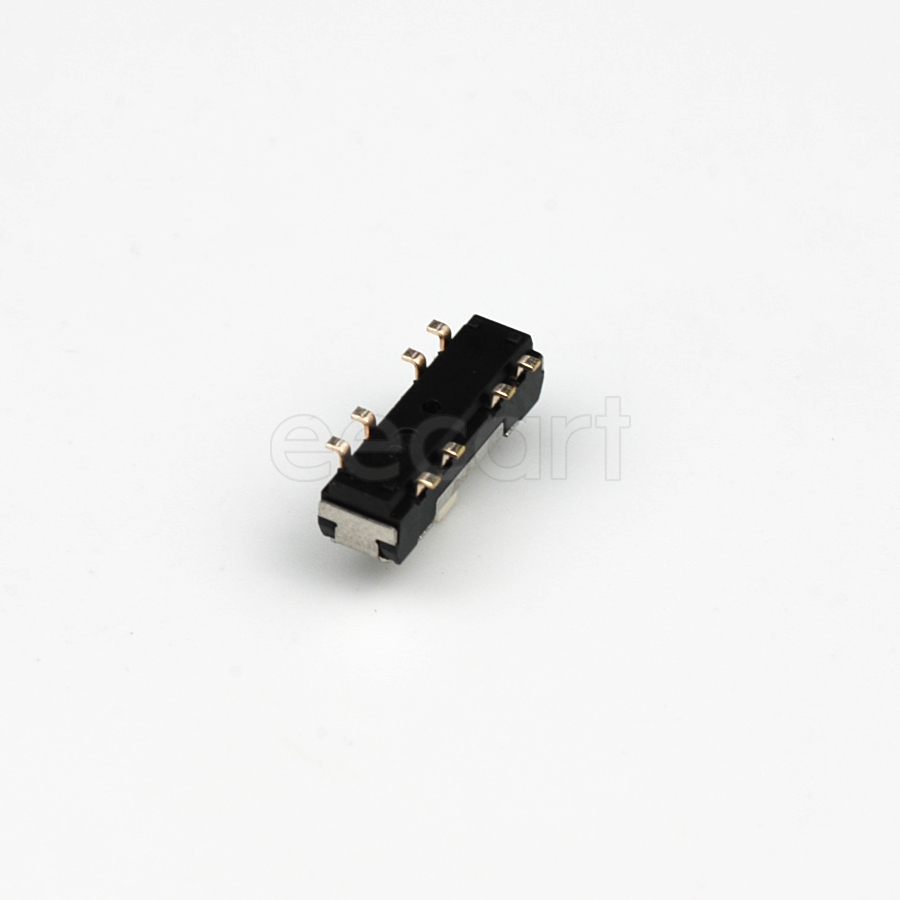

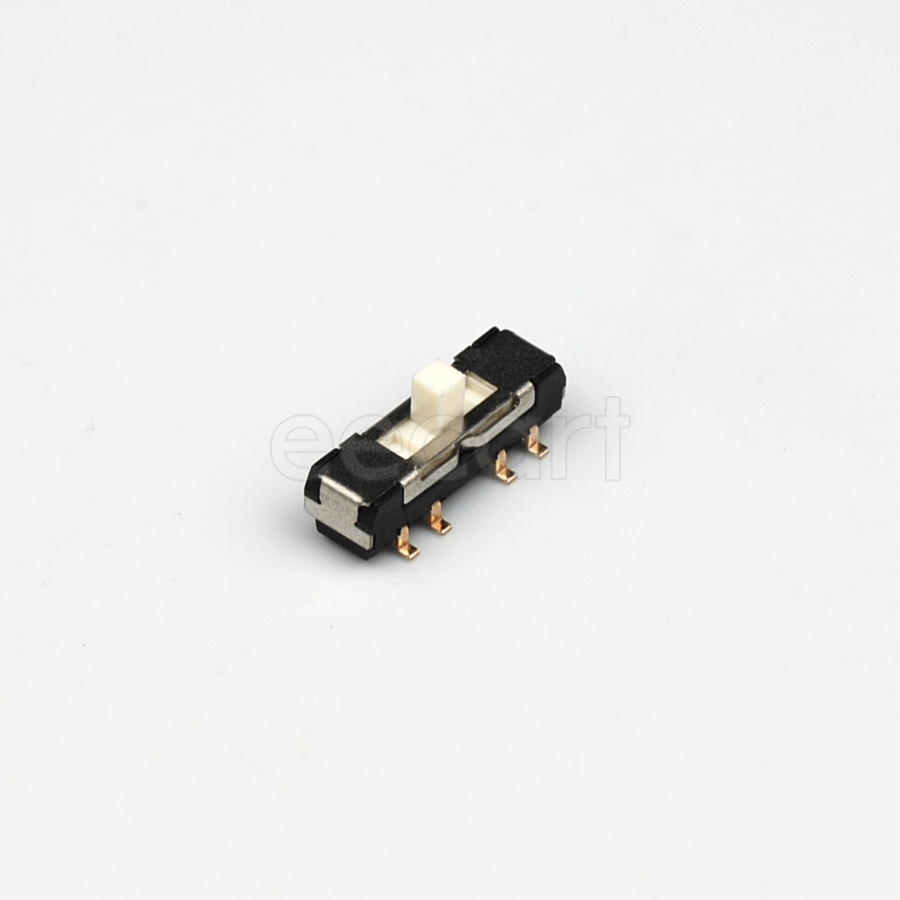

Slide Switches SMD/SMT ON - ON SPDT Current Rating:200 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Circuit Type | SPDT |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper Alloy |
| Current Rating | 200 mA |
| Orientation | Vertical |
| Actuator Length | 2 mm |
| Throw Configuration | SP3T |
| Contact Style | Non-Shorting |
| Switch Function | ON - ON |
| Electrical Life | 10 kcycles |
| Switch Travel | 2 mm |
| Actuator Material | Nylon, Polyamide |
| Contact Current Rating | 200 mA |
| Actuator Type | Slide |
| Termination Style | SMD/SMT |
